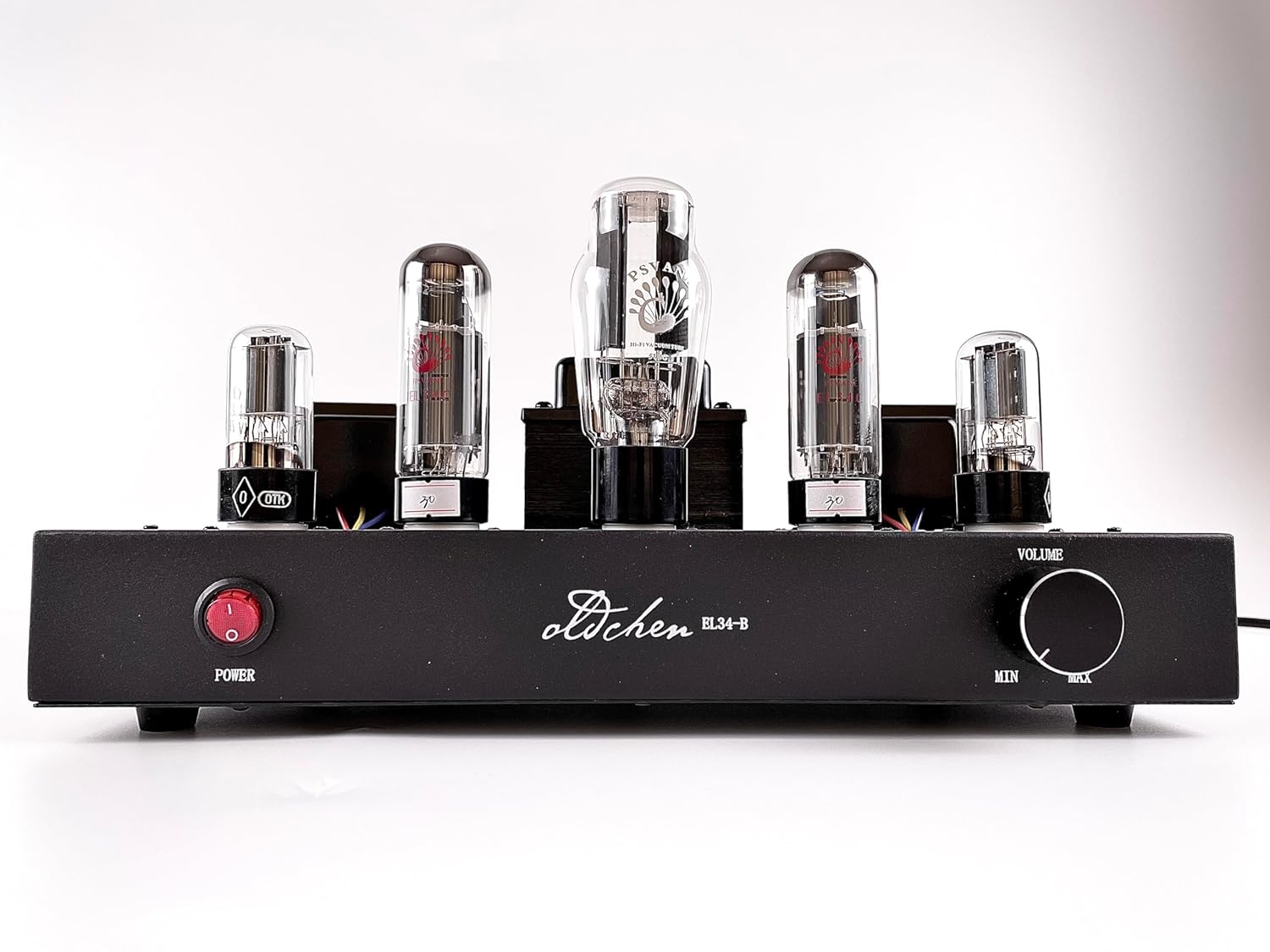

Oldchen EL34 Single-Ended Class A Tube Amplifier, Hand-Wired Point-to-Point HiFi Integrated Amplifier for Home Audio, Home Theatre Vacuum Tube Power Amplifier 10W, Black

Specifications: Model: Oldchen EL34 Audiophile Edition Type: Single-ended Class A Integrated Tube Amplifier Power Output: 10W x 2 (RMS 8Ω) Frequency Response: 20Hz - 25kHz (-1dB) Total Harmonic Distortion (THD): <1% (at 1kHz) Signal-to-Noise Ratio (SNR): > 88dB Input Sensitivity: 500mV - 2000mV Input Impedance: 100kΩ Output Impedance: 4Ω, 8Ω Power Consumption: 105W Dimensions (W x D x H): 370 x 210 x 230mm Weight: 9Kg (Package) Voltage: 110V Tube Complement: 1x PSVANE 5U4G Rectifier Tube 2x PSVANE EL34C Power Tubes 2x Soviet 6H8C (6SN7 equivalent) Pre-amplifier Tubes

• AUTHENTIC SINGLE-ENDED CLASS A TUBE SOUND: Immerse yourself in the warm, rich, and incredibly detailed sound that only a Single-ended Class A amplifier can provide. Featuring a premium tube complement of EL34C power tubes, 5U4G rectifier, and Soviet 6H8C (6SN7 equivalent) preamp tubes, this amplifier delivers lush, mellow vocals and transparent highs, making it perfect for jazz, classical, and acoustic music.
• MASTER-LEVEL HAND-WIRED CRAFTSMANSHIP: Built upon 20 years of expertise, each amplifier features meticulous hand-wired, point-to-point (PTP) circuitry. This traditional, time-honored technique minimizes signal path interference and maximizes sonic purity. The immaculate internal layout, utilizing Teflon silver-plated wiring, is a testament to our commitment to both performance and quality.
• PREMIUM AUDIOPHILE-GRADE COMPONENTS: No compromises were made in sourcing components. This amplifier is equipped with a custom-wound output transformer using imported Japanese Z11 silicon steel, a high-precision Japan ALPS potentiometer for smooth volume control, "Black Gold" series capacitors, and a robust CLC inductor filter (5 Henry) to ensure an ultra-clean power supply and silent background.
• POWERFUL & VERSATILE FOR YOUR SPEAKERS: With a robust 10W per channel output, this amplifier can effortlessly drive a wide range of bookshelf or floor-standing speakers with a sensitivity of 88dB or higher. The gold-plated pure copper speaker terminals provide solid connections for 4Ω and 8Ω speakers, accepting banana plugs, spade connectors, or bare wire.
• ROBUST POWER SUPPLY & CUSTOM TRANSFORMERS: The soul of the amplifier lies in its power. A heavy-duty CLC inductor filter (5 Henry) and our custom-wound transformers with Japanese Z11 steel create an ultra-clean power supply. This results in a virtually silent background with a noise floor of just 0.5-1mV, laying a solid foundation for its authoritative bass and expansive soundstage. At zero volume, any hum is negligible and only audible with an ear pressed to the speaker.
